Why Ductless HVAC Systems are Popular
Beginning Notes:
Ductless HVAC systems are air conditioning systems that connect an indoor unit to an outdoor compressor. They do not require ductwork to blow cool air and heat into a room or living area.
The cool air that is released into your room or living area comes from the indoor unit, while the outdoor compressor releases the heat it absorbs outside. Your wall-mounted mini-split air conditioner is the best example of a ductless HVAC system.
Aside from the wall-mounted mini-split, there are other types of ductless heating and cooling systems.
- Portable air conditioner
- Wall-mounted multi-split air conditioners
- Cassette-type air conditioners
- Window-type air conditioners.
Many homeowners prefer ductless HVACs because of the aesthetic appeal they add to a room or living area and the fact that thousands of consumers commonly use them. Most homeowners prefer to go for products that are familiar to them.
There are many other reasons why ductless systems have become popular over the years. Here are some of the advantages they offer:
-
-
Ductless systems are energy efficient:
Ductless HVAC systems are more energy-efficient compared to their ducted counterparts. The primary reason for this is the absence of ducts, which can easily tear, rupture, or leak. Leaking or ruptured ducts are common reasons for increased energy usage.
- Ductless systems are also equipped with compressors that are inverter-driven. As such, they prevent constant compressor start-up, which uses up a lot of energy.
-
copyright image by envato.com
- The ductless system’s compressor adjusts speed according to what the system needs, so it doesn’t completely shut off the way that a traditional or regular HVAC compressor does.
- Additionally, ductless air conditioner4s typically have higher SEER ratings than the ducted ones, with some getting a 30. The SEER or Seasonal Energy Efficiency Ratio checks out how efficient an air conditioning system is.
- The higher the SEER ratio, the more efficient the system is; the more efficient the system is, the lesser your expenses.
-
Quik scroll to topic side notes …
-
How Ductless Systems Work:

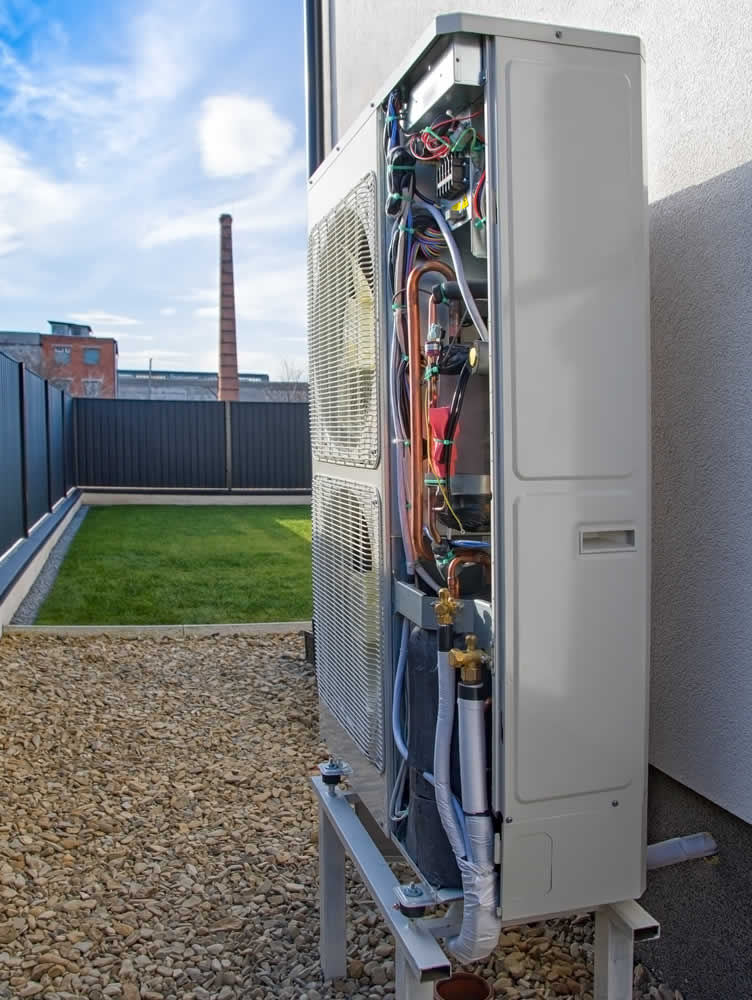

Ductless air conditioners (or mini-splits) connect each of the individual room AC unit(s) to an outdoor compressor via a conduit.
The conduit is a thin, long cable that contains the refrigerant tubing, condensation drain, and power cable.
copyright image by envato.com
The evaporator coil within the inside unit is cooled with the refrigerant. The coils absorb the warm air and condensation from the room and transfer it to an outdoor condenser through the conduit. The condenser then takes all of the indoor heat and unloads it to the outside.
There are single-zone units that work for a single room (such as cooling a converted attic); and multi-zone units that are stationed in every room with conduits connecting each unit.
How Ductless System Work (google images) How Ductless AC Works view illus – Ductless Diagram view illus – Multi-Zone Unit view illus – How Ductless Work youtube – Advantages of Ductless youtube - —— next topic ——
-
Ductless Systems Have Better Indoor Air Quality:
Contrary to what most of us have been led to believe, indoor air is more toxic than the air outside our homes. So, it is vital to note that ducted air conditioners pull in a large amount of debris and dust after some time (especially if the system isn’t properly maintained).
- Ductless cooling and heating systems, on the other hand, are equipped with a filtration process that helps lessen airborne particles such as allergens, pollen, bacteria, and dust.
-
copyright image by 123rf.com
- HEPA filters are capable of filtering out over 99% of these airborne particles, specifically those that are larger than or are 0.3 microns in size. Standard built-in filters for ductless systems are also efficient in blocking pollutants.
-
Quik scroll to topic side notes …
-
Speaking of Air Quality:
Is the air your breathe in your home clean? Or is it stale air that can increase allergies and illness? Clean the air you breathe with home air purifying systems and filters.
As we make our homes more energy efficient – through insulation, weatherstripping, sealed windows and doors, etc. – we make them more drum-tight to prevent outside air from flowing through. We then find ourselves breathing in stale air that can cause allergens and illness.
copyright image by 123rf.com
Allowing more free air to flow by opening windows and installing ceiling fans to circulate the outside air brings in fresh air – but fresh air may have outside allergens and pollutants that may irritate.
That is where air purification systems can be helpful to keep air clean and flowing – thus clean ventilated air.
Air Purifiers (from amazon) – HEPA filter air purifiers view ideas – activated carbon view ideas – UV purifier view ideas – ozone air purifier view ideas Detection Systems (from amazon) – carbon monoxide view ideas – radon view ideas – gas leak view ideas – smoke view ideas – air quality view ideas - —— next topic ——
-
Ductless Systems Are Easier To Install And Use:

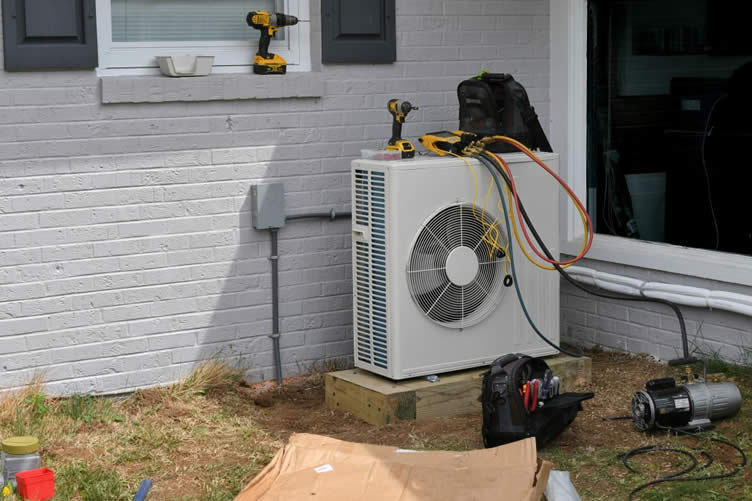

Installing a ductless HVAC system is easy. It does not require a complex setup process and can be completed in more or less one day.
-
copyright image by envato.com
- Ducted air conditioners take a lot of time and effort to install. You may even have to move around some furniture, use heavy machinery or equipment, or tear the wall or ceiling. Ductless systems will not require you to modify your home or any part of it.
-
Quik scroll to topic side notes …
-
Understanding Ductless Heat Pumps:
Reversible ductless HVAC systems provide both cooling and heating features using a heat pump. The heat pump pulls heat from the cold outdoor air to increase temperatures inside. In colder climates, heating or thermal strips may be added to provide the ample heating that may be required.
The heat pump is used for both heating and cooling the room. The heat pump reverses the process in the summer by removing warm air inside to the outside.
copyright image by envato.com
How Heat Pumps Work (google images) How Heat Pump Works view illus – Heat Pump Diagram view illus – Heat Pump vs. Furnace view illus – Understanding Heat Pumps youtube – Heat Pumps Explained youtube - —— next topic ——
-

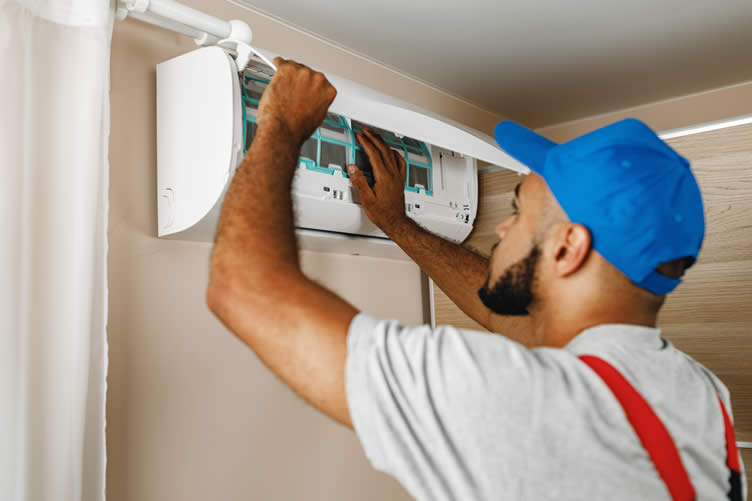

Ductless Systems Are Easy To Maintain and Quiet to Operate:
Ductless HVAC systems have very minimal parts in addition to some filters, so they’re easy to clean. They do not require a special cleaning procedure, equipment, or material. Furthermore, there are no ducts to check for leaks, ruptures, and similar problems.
-
copyright image by twenty20.com
- Ductless systems are also quieter. Ductless air conditioners continuously run, so they do not need to constantly cycle on and off. They do not make much noise, so they’re convenient to have in any room or living area.
-
Quik scroll to topic side notes …
-
Types and Makes of Ductless Systems:
Brief review of the types of ductless systems to consider – and who are the major players in ductless system. No evaluation or recommendation has been conducted.
Types of Ductless Systems (google images) – Wall Mounted view sample – Ceiling Recessed (Cassette) view sample – Floor Mounted view sample – Concealed Duct view sample – Outside Condenser view sample
-
-
CONCLUSION:
Whether it is your first time getting an HVAC system or you are planning to switch to a new air conditioning system, studying your options should be a priority. Ductless heating and cooling systems are popular, but your reason for choosing to get one should be right.
- Understand and keep in mind the advantages listed above before deciding on which HVAC system to buy. Talking to an HVAC specialist will also help.
-
