But they also do more than that. They can identify supervisory conditions and troubleshoot problems.
Smoke Detectors
Smoke detectors are a fundamental part of fire alarm systems. They identify supervisory and alarm conditions for occupants and authorities alike.
Ionization smoke alarms use a cold cathode tube to create a constant current of ionized air between two electronically charged plates. When a smoke particle enters the chamber, it interrupts the current flow and triggers the alarm.
This type of alarm is best for detecting fast, flaming fires. Photoelectric smoke detectors work differently, using a light source to detect particles that reflect off smoke.
These detectors respond better to smoldering fires, as well as some residential fires. Choose a combination of ionization and photoelectric sensor fire alarm for ultimate protection and reputable fire alarm system companies.
Occupant Notification
To notify occupants in the building of an emergency, fire alarm systems must support audible alarms (think horns and speakers) and visual notification appliances or strobes. These are required in some sleeping and dwelling units in Group I-1 and R-2 occupancy.
Often, it’s impractical for a whole building to be evacuated immediately upon a fire alarm device triggering. It is particularly true of high-rise buildings, where evacuating all floors at once would result in massive property damage.
For situations such as this, a code-compliant system may use a private operating mode to allow select occupants in the building to receive a signal instead of a sounder.
In conventional systems, physical cabling connects call points and detectors, and their signals are wired to a Fire Alarm Control Panel that should be fitted by a professional company such as Industrial Fire TX to ensure this is all fitted and working correctly.
The system is arranged in zones to simplify locating the source of an alarm for both the fire brigade and general staff. These zones are indicated at the control panel with either indicator lamps or a text display.
Voice Evacuation
A voice evacuation system is a crucial component of any fire alarm. It transmits live or pre-recorded verbal instructions via wired or wireless PA systems.
It allows the fire brigade to send out specific messages to different parts of your building, directing occupants in a way that reduces crowding and confusion. These messages are triggered by your fire alarm control panel, either automatically or manually.
They can be broadcast using audible notification appliances (horns, bells, and chimes), speakers that allow firefighters to deliver live instructions, and strobe lights for the visually impaired.
It is essential because it gives people clear and understandable instructions, rather than a fire alarm’s vague and confusing sound. They can then exit the building in a calm and controlled manner, helping to prevent panic and irrational responses.
They can also provide step-by-step instructions to help you safely get to safety. It is beneficial for high-rise buildings that must be fully equipped with elevators.
Fire Alarm Control Panel
The central component of a fire detection system is a fire alarm control panel (FACP). It monitors inputs and system integrity, controls outputs, and transmits information to occupants and fire department dispatch.
other related articles of interest:
A conventional FACP represents the building as a series of zones, with each zone representing a group of smoke detectors and pull stations that are wired together. When the panel indicates an alarm, it shows a change in electrical current from a device somewhere in the zone, not which specific device.
An addressable fire panel shows which device in the system has been activated by a smoke detector or pull station, making it much easier for first responders to identify and quickly respond to a fire.
It is a significant advantage over conventional systems and even older addressable panels. A drill button on many panels lets the fire department know that a drill has been triggered rather than an actual fire.
Find Home Security Services Home Security Alarms Home Automation Generators top-rated, pre-screened local contractors FREE: download contractor selection enter zip code – powered by HomeAdvisor ™

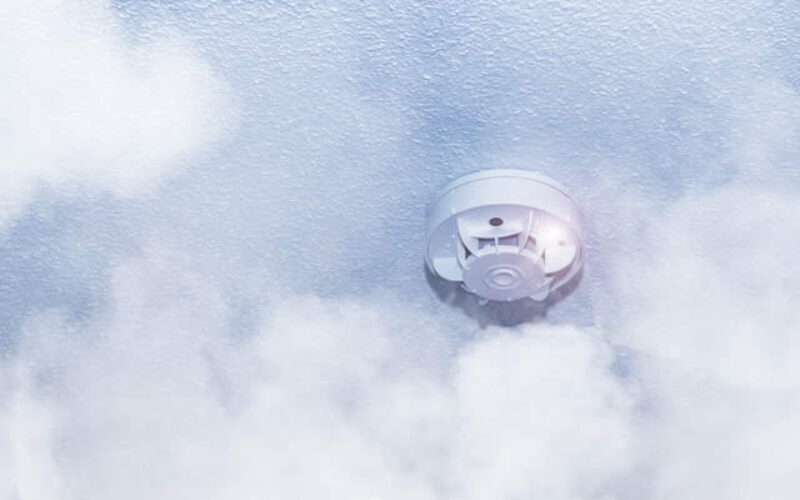

Image credit: different features of a fire alarm system by envato.com
